Maximum Controls - MAX RHINO 4000 FS Slide Gate Operator

Fail-Safe Industrial Brushless DC Slide Gate Operator for 4,000 lb Gates

The Maximum Controls Max Rhino 4000 FS is a fail-safe, high-traffic industrial brushless DC slide gate operator built for demanding commercial and industrial applications requiring maximum gate weight capacity. It handles gates up to 4,000 lbs and 50 ft with independent open and close speed control adjustable from 10 to 19 inches per second, rated UL 325/991 Class III and IV. As with all Maximum Controls fail-safe operators, the gate is back-drivable upon loss of both AC power and battery: a local switch, keypad, or any dry contact relay releases the dynamic braking system for emergency push-back. In closed position, that same brake resists forced entry and triggers an audible alarm with relay output if unauthorized push-back is attempted.

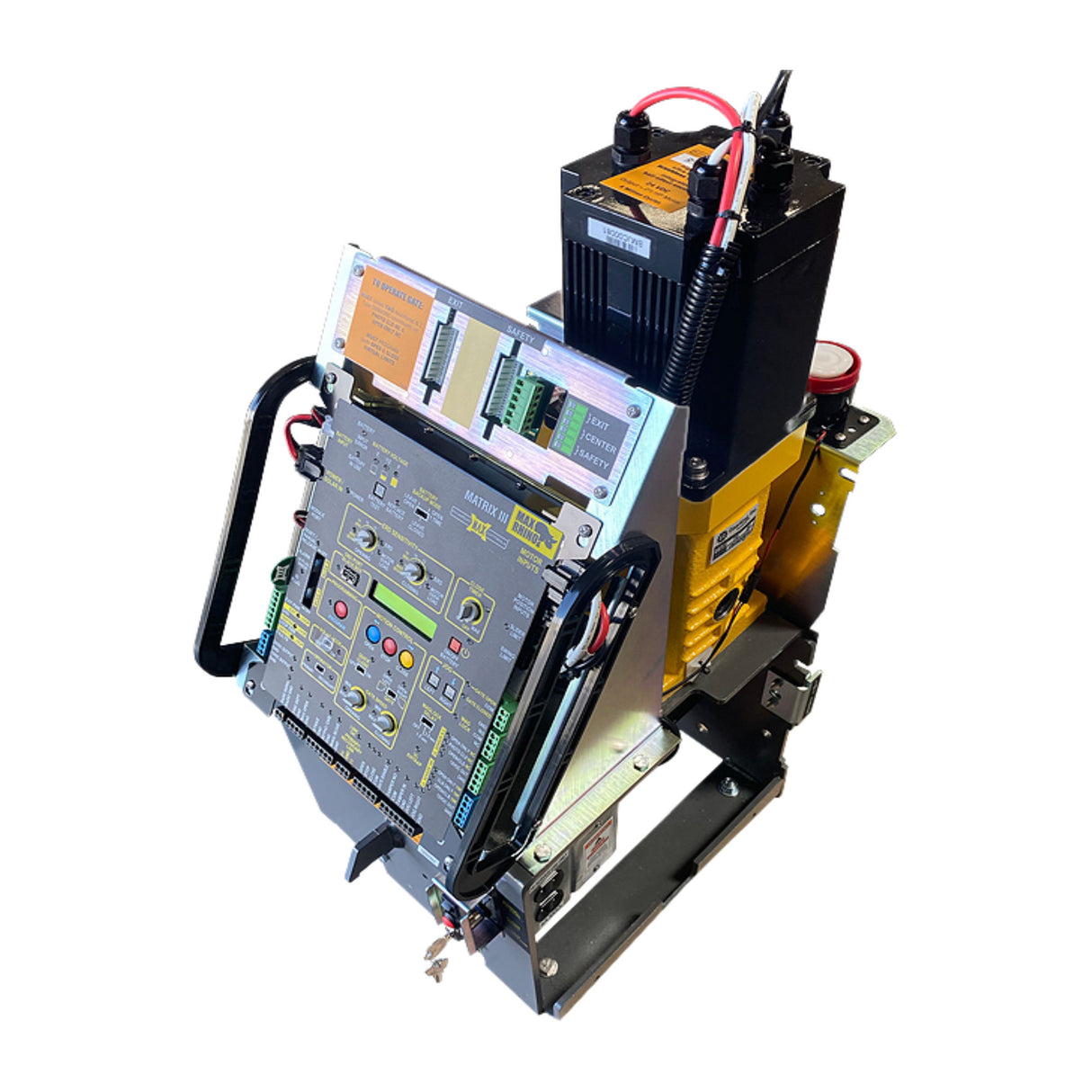

The direct drive Size 70 gearbox operates in an oil bath with no belts, chains, or pulleys, producing torque equivalent to a 2 1/2 HP AC motor. The Matrix III Advanced Controller logs 8,000 events to non-volatile memory with LCD display for on-site error review. Two included Yuasa AGM 12V batteries provide approximately 40 backup cycles upon AC loss, and the 24V DC solar input supports off-grid and solar-supplemented installations.

Key Features

• Fail-safe back-drivable operation via local switch, keypad, or dry contact relay; dynamic brake resists forced entry and triggers audible alarm on unauthorized push-back
• Independent open and close speed control, adjustable from 10 to 19 in per second
• Brushless DC motor equivalent to 2 1/2 HP AC; direct drive Size 70 gearbox in oil bath; no belts, chains, or pulleys
• Two Yuasa AGM 7Amp/Hr 12V batteries included; approximately 40 backup cycles. Battery not used when AC is present
• Solar 24V DC compatible input
• Lightning protection up to 20,000 V / 10,000 A
• Matrix III controller; 8,000-event on-board diagnostic log with LCD display
• Programmable virtual limits standard; optional magnetic limit sensors available
• Patented chain drop tamper detection; gate status outputs for open/close monitoring
• Continuous duty from -4°F to 165°F (-20°C to +74°C) including battery performance without a heater

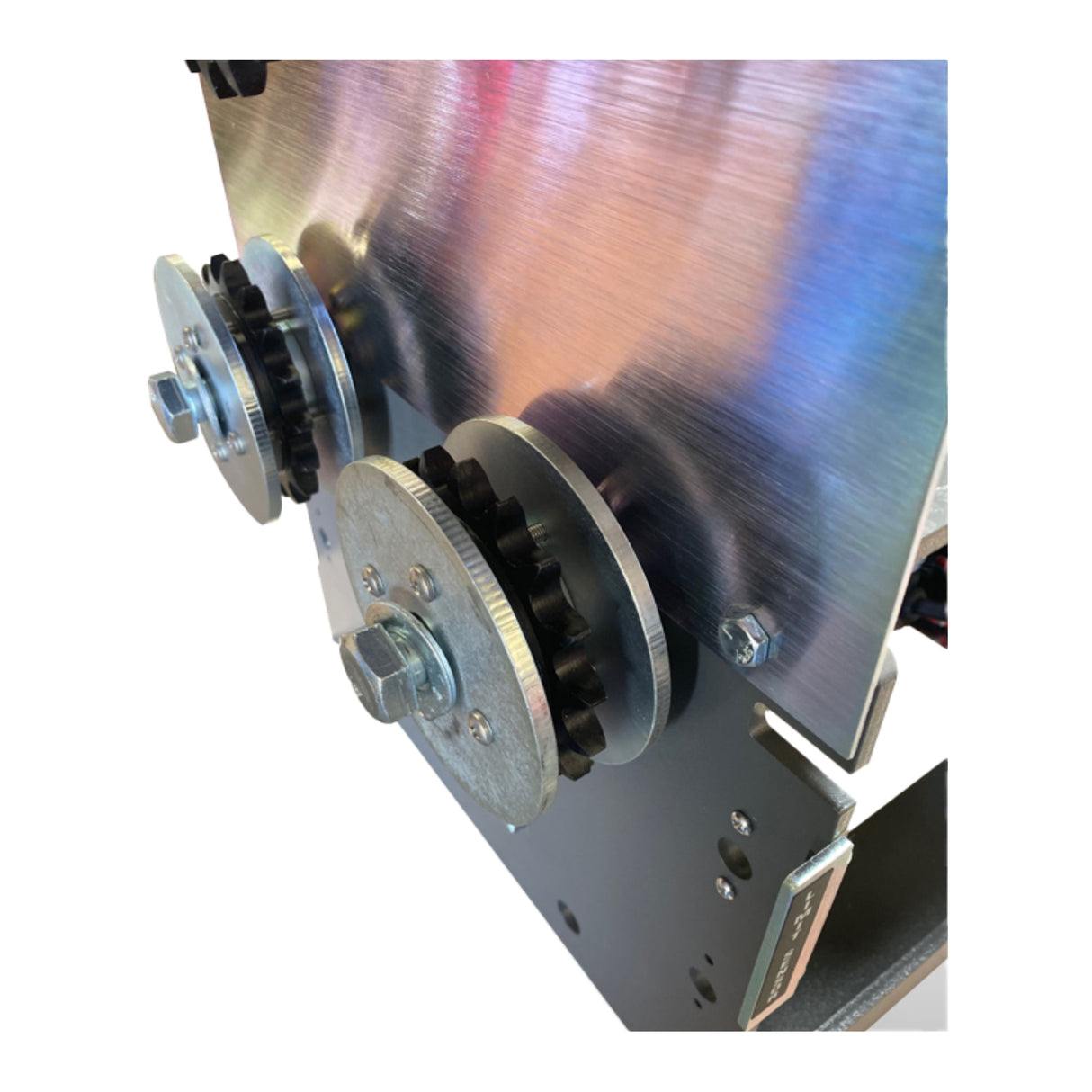

• Includes 30 ft #50 Nickel Plated Chain
• 3-year warranty (operator); 1-year (batteries). Made in USA

Technical Specifications

• Model: Max Rhino 4000 FS
• Gate Capacity: 4,000 lbs
• Maximum Gate Length: 50 ft
• Gate Speed: 10 to 19 in per second, independent open/close control
• UL Classification: Class III and IV
• Compliance: UL 325/991, ETL listed, CSA approved
• Motor: Brushless DC, 2 1/2 HP AC equivalent
• Gearbox: Size 70, direct drive, oil bath (no belts, chains, or pulleys)
• Controller: Matrix III Advanced Controller

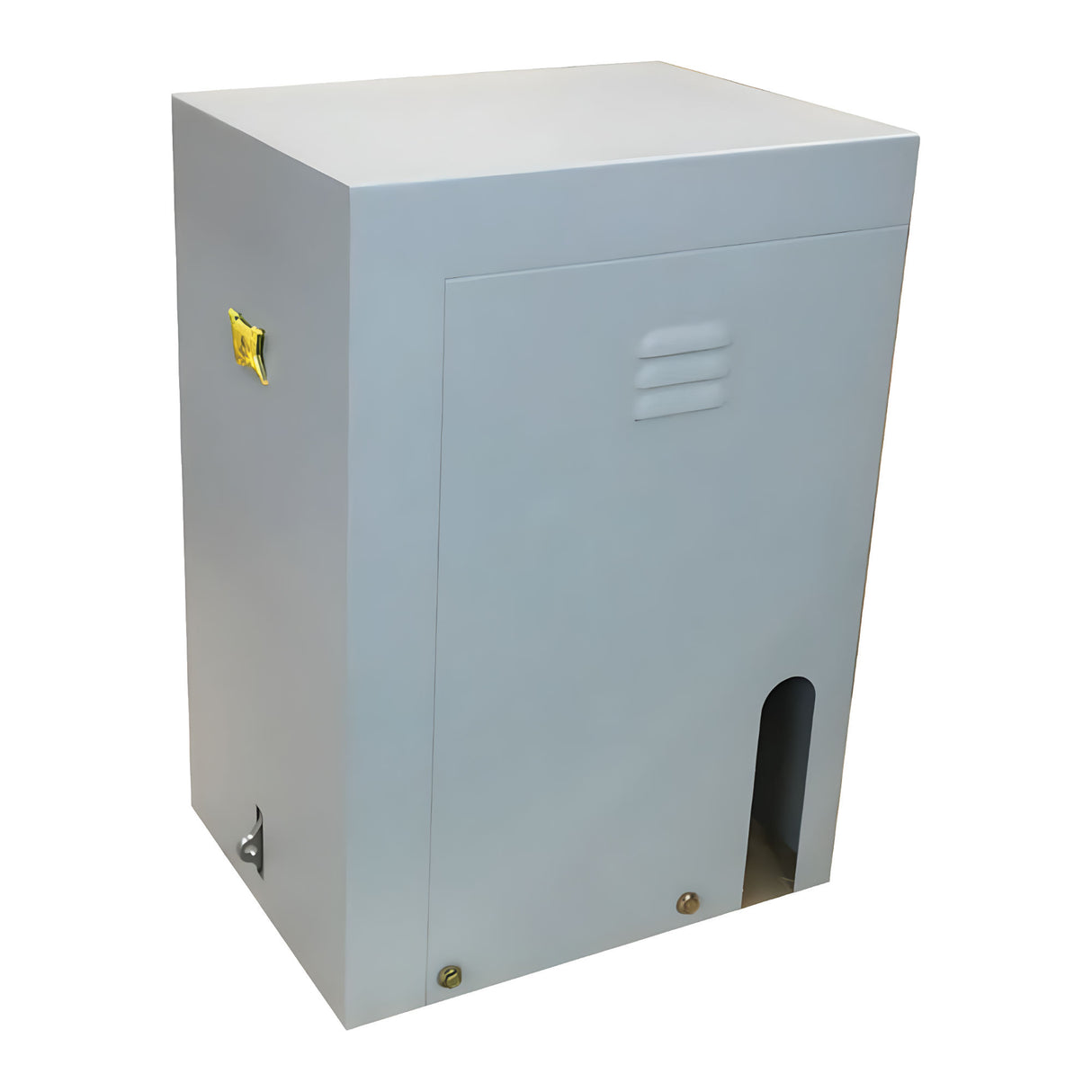

• Dimensions: 14.5 in W x 19.625 in D x 29 in H
• Weight: 225 lbs
• Input Power: 115V or 230V AC, single phase, switchable
• Operating Temperature: -4°F to 165°F (-20°C to +74°C)
• Battery Backup: 2x Yuasa AGM 7Amp/Hr 12V; approx. 40 cycles
• Solar Input: 24V DC compatible
• Lightning Protection: Up to 20,000 V / 10,000 A
• Event Log: 8,000 events, LCD display
• Safety Inputs: Normally closed or 10K types
• Included: 30 ft #50 Nickel Plated Chain
• Optional: Magnetic limit sensors, chain tray
• Warranty: 3 years (operator); 1 year (batteries)
• Manufacturer: Maximum Controls LLC
• Condition: New

Conclusion

The Max Rhino 4000 FS is rated Class III and IV only and is not UL classified for Class I or II residential applications. Safety sensors are required for UL 325 2018 compliance and are not included. Products purchased from unauthorized distributors are not covered under the manufacturer warranty.
