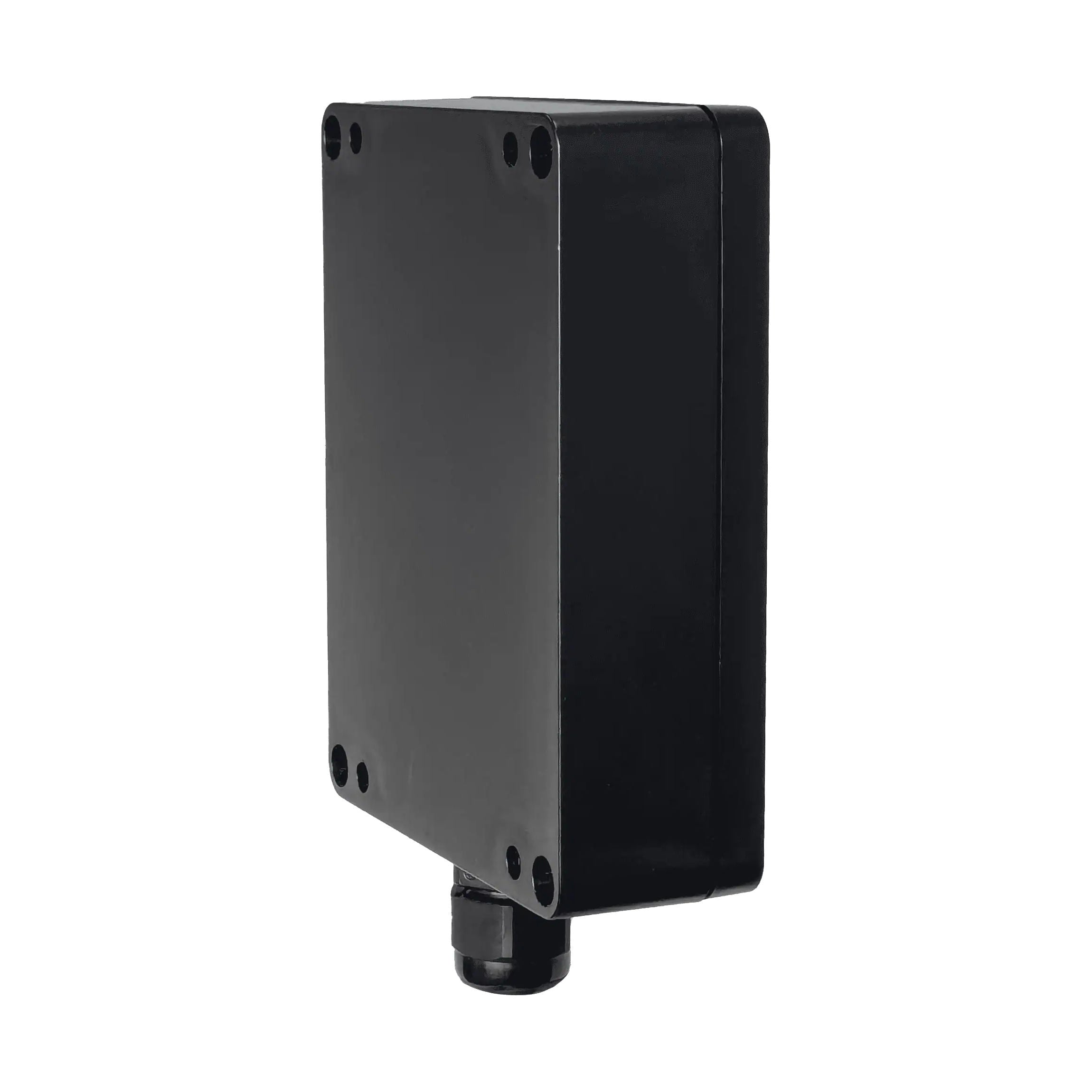

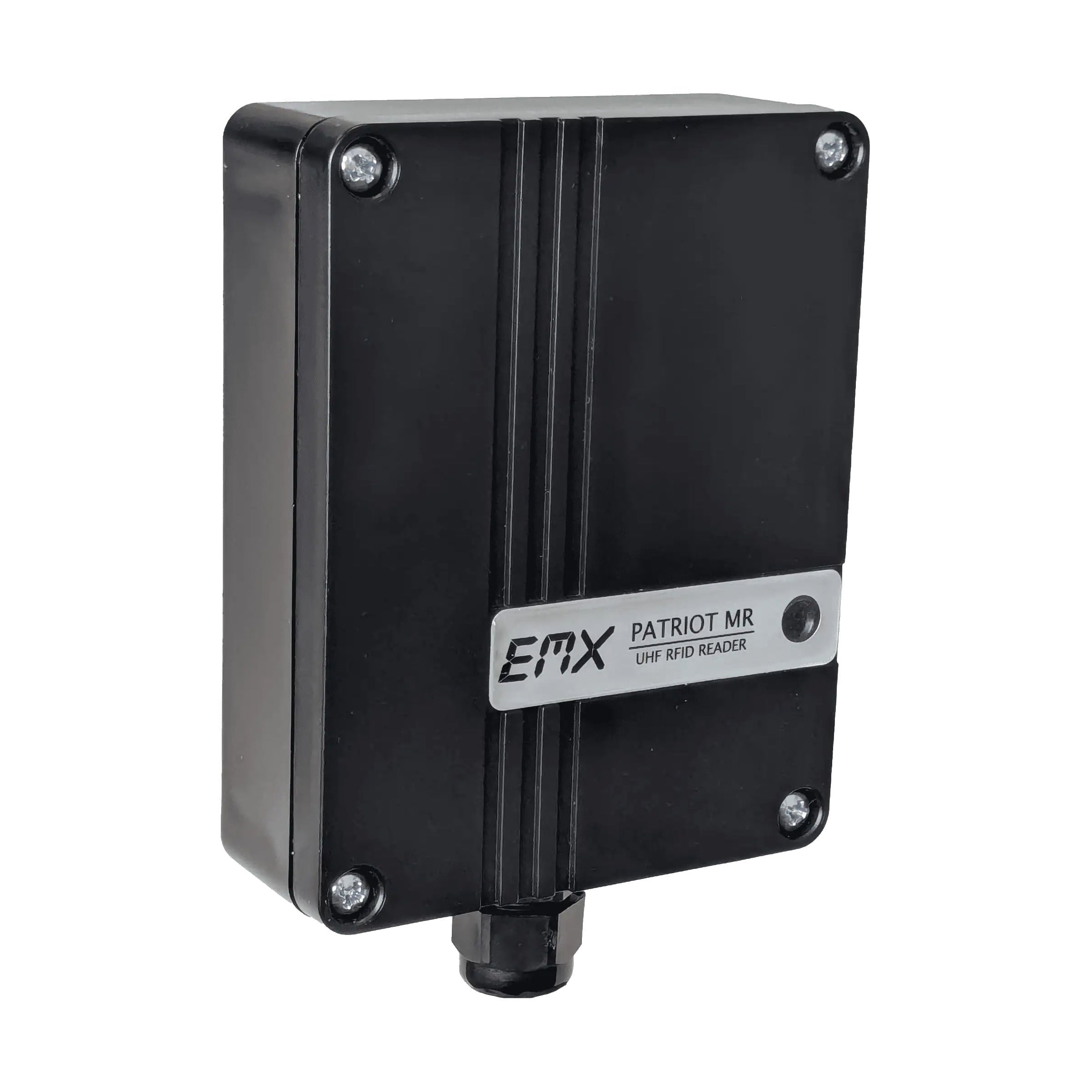

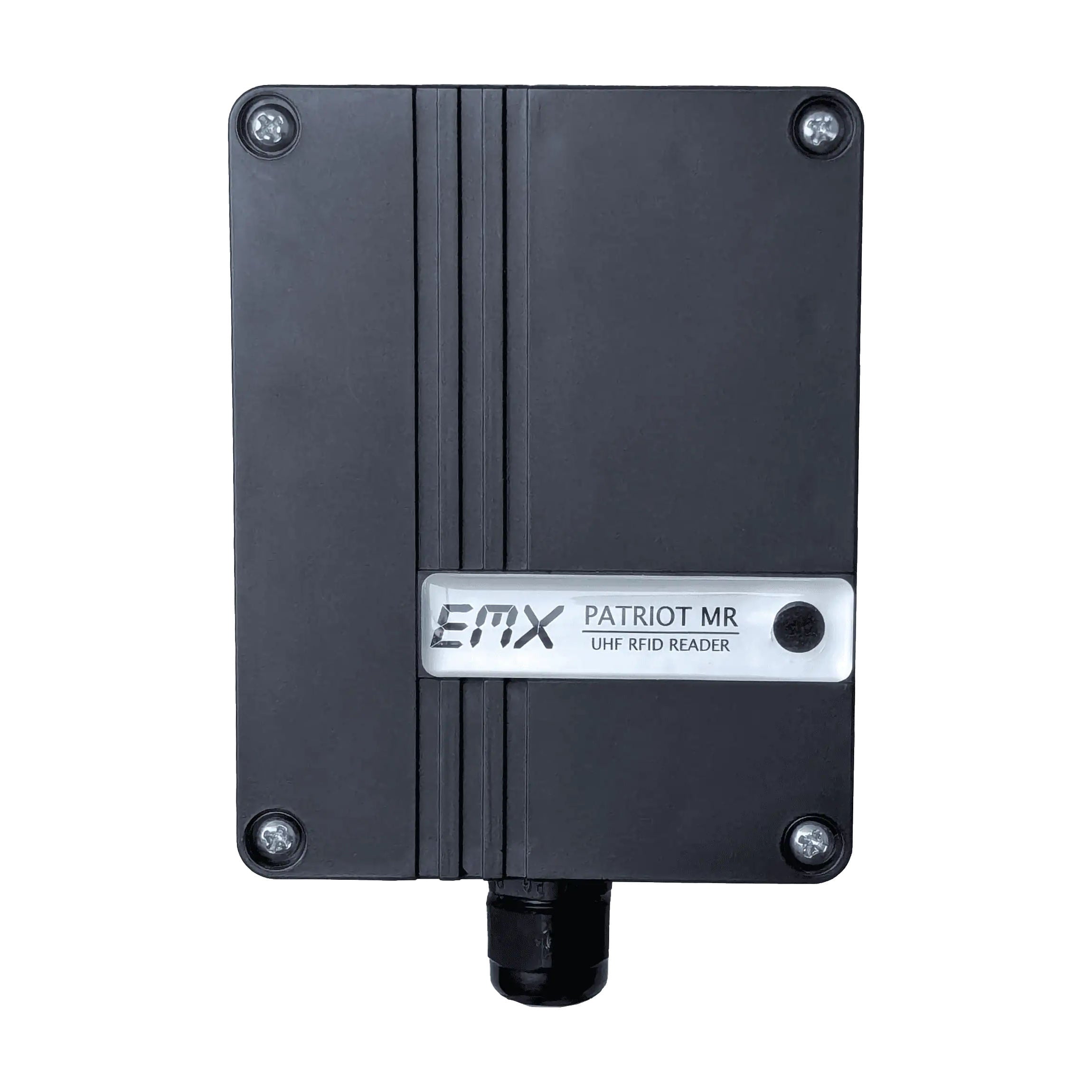

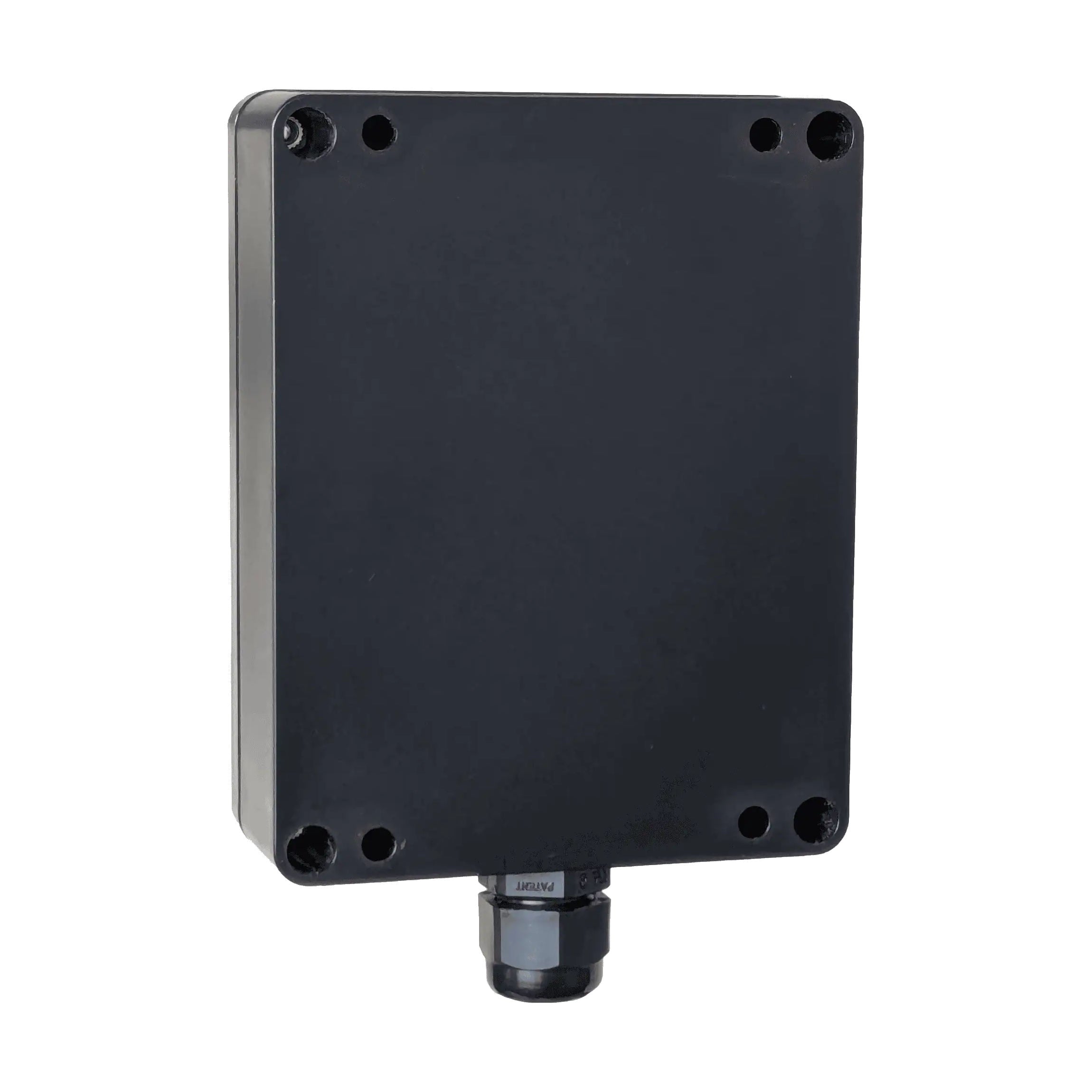

EMX Patriot-MR Mid-Range RFID Reader 902-928 MHz

Compact Mid-Range RFID Reader for Vehicle Access Control

The EMX Patriot-MR is a compact, mid-range RFID reader designed for precise vehicle access in environments requiring tight read zones. With a circular polarized 4 dBi antenna and a read range of 6 to 10 feet, it is ideal for residential gates, parking kiosks, and carwash applications where longer-range readers are not appropriate. It supports 26-bit Wiegand and RS-232 outputs and includes audible and visual indicators for tag detection.

The Patriot-MR is field-configurable via RS-232 software for adjustable RF power, buffer timing, and Wiegand pulse settings. A trigger input provides additional control over when reads occur, helping to prevent unauthorized detection. Compact in size and rugged in design, it ships with a universal mounting bracket and is compatible with all EMX UHF EPC Gen2 credentials.

Key Features

• Circular polarized antenna with 4 dBi gain
• Operating range of 6–10 ft depending on credential and environment
• Designed for carwash lanes, residential gates, and parking kiosks
• Supports Wiegand (26-bit) and RS-232 output formats
• Trigger input for controlled reads or continuous read mode
• User-adjustable RF power (2–25 dBm) and timing parameters
• LED and buzzer indicators for tag detection feedback
• Field-upgradable firmware via RS-232
• IP65-rated enclosure for outdoor installation
• Includes universal mounting bracket

Programming & Configuration

• Setup via RS-232 using EMX’s PC software (RS-232 to USB adapter required)
• Adjustable radio power, read interval, buffer time, and Wiegand pulse timing
• Factory default optimized for fast response and max range
• Supports ASCII and HID simulation for RS-232 output
• Configuration changes confirmed via audible beep

Technical Specifications

• Frequency: 902–928 MHz
• Antenna Type: Circular polarized internal ceramic
• Max RF Power: 25 dBm
• Supply Voltage: 9–30 VDC
• Current Draw: 75 mA average (12V), 200 mA peak
• Outputs: Wiegand 26-bit and RS-232
• Trigger Input: Supported via dedicated wire
• Dimensions: 5.5” x 1.3” x 3.5”
• Operating Temp: -20°C to +70°C
• Enclosure Rating: IP65

Compatible Credentials

• Windshield Tags - UHF EPC Gen2
• Hang Tags - UHF EPC Gen2
• Access Cards - UHF EPC Gen2
• Headlamp Tags- UHF EPC Gen2

Conclusion

The EMX Patriot-MR is engineered for applications that demand reliable tag reads within a tight zone. Its flexible configuration options and compact housing make it an optimal choice for mid-range security deployments.
