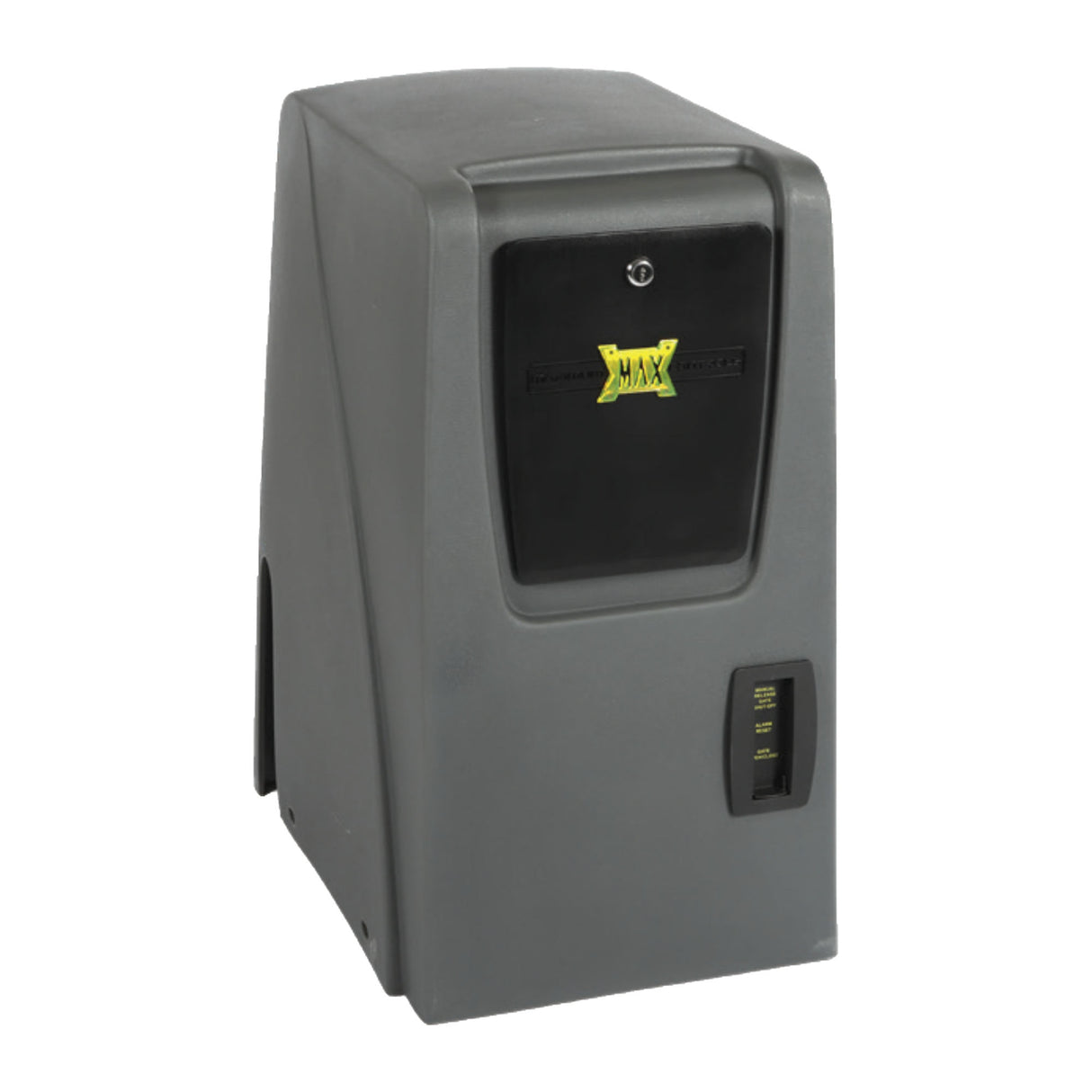

Maximum Controls - MAX 2200 PRO Slide Gate Operator

High-traffic Commercial Gate Operator - Maximum Level of Gate Control

The MAX 2200 PRO is a high-traffic commercial continuous-duty brushless 24V DC slide gate operator rated for gates up to 2,200 lbs at 60 ft, traveling at 12 inches per second. It is designated Fail Secure, meaning the gate remains closed when AC power and battery are both lost, a critical requirement for restricted access, commercial, and industrial installations where a closed default state is non-negotiable. UL 325/991 compliant for Class I through Class IV applications, it operates in temperatures from -4°F to 165°F (-20°C to +74°C) without a heater, including battery performance. A 25 ft nickel-plated chain and mounting brackets are included.

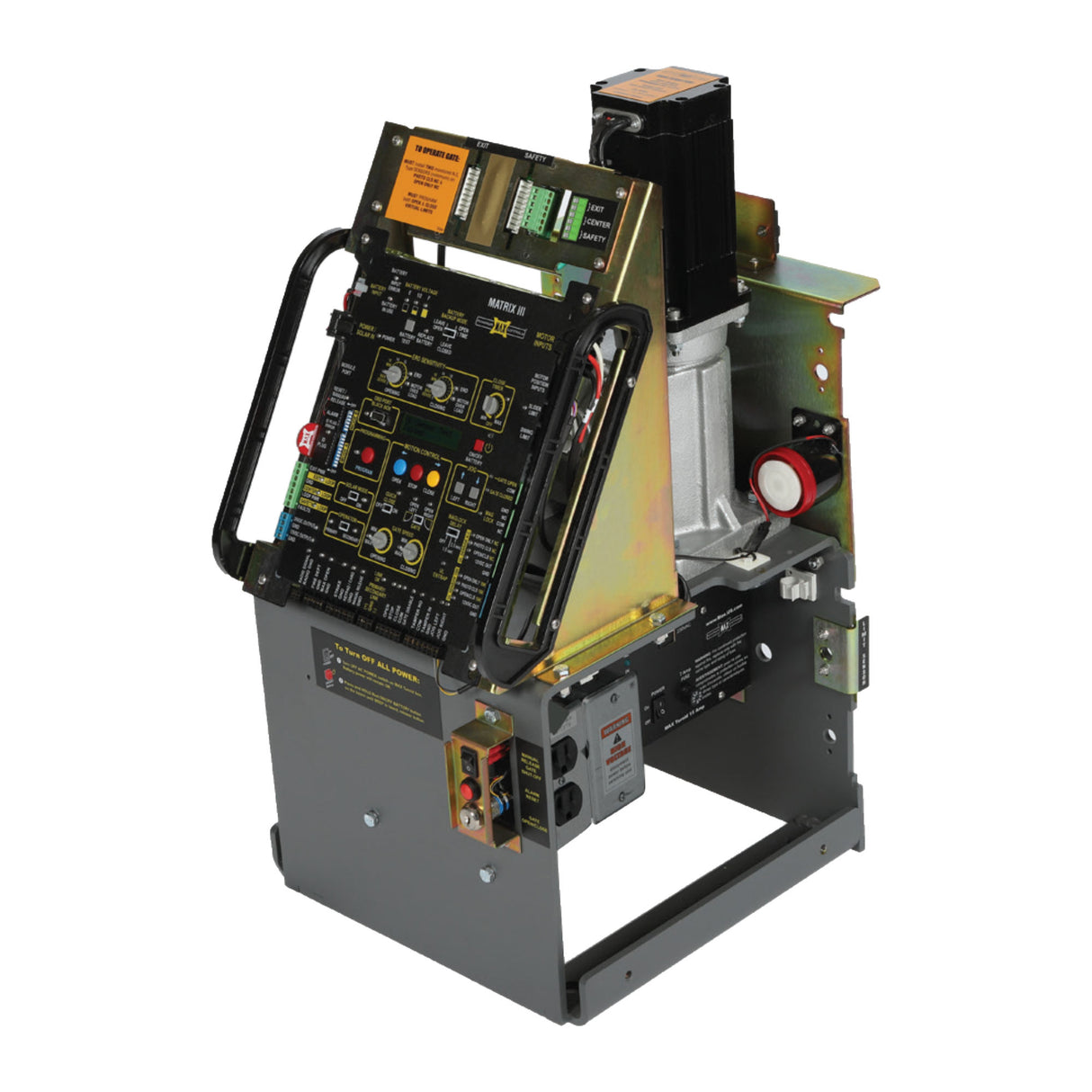

The mechanical core is a Size 60, 30:1 direct drive cast iron gearbox with no internal chains, belts, or pulleys. A brushless DC motor with an integrated Hall Effect encoder tracks 30 precise rotational positions per inch of gate travel, feeding adaptive DSP-controlled ramp-up and ramp-down with instant stop and no overcoasting. This level of positional control is critical in bi-parting slide gate installations where overcoasting causes gate-to-gate collisions or contact with catch posts. Virtual open and close limits ship as standard and auto-reset on the first cycle after a complete power loss. Optional magnetic chain sensors are available factory-installed or as a field retrofit. Lightning protection covers 44 channels across all inputs, outputs, and loop connections, rated to 20 kV and 10 kA.

Key Features

• Fail Secure: gate defaults to closed position on loss of both AC power and battery
• Brushless 24V DC motor with Hall Effect encoder; 1-1/4 HP AC motor equivalent; approximately 6 million cycles / 35,000 operating hours with no torque loss due to aging
• Size 60, 30:1 direct drive cast iron gearbox; bronze gears, synthetic oil bath, no internal chains, belts, or pulleys
• Gate capacity 2,200 lbs / 60 ft; 12 in per second; 16 selectable speed positions; independent opening and closing speed controls for primary and secondary
• AGM battery backup; approximately 200 cycles; Solar Ready module available; Magic Box low-voltage remote power up to 500 ft (sold separately)
• Advanced Matrix III controller with USB OBD Black Box; logs 8,000 events including error history, downloadable as .TXT file
• Security suite includes patented Tamper Alert relay, Gate Disable, anti-tailgate loop management, and Fire Department Compliance auto-open
• 5-year warranty on components; 1-year warranty on battery and idler sprockets

Technical Specifications

• Manufacturer: Maximum Controls LLC
• Model: MAX 2200 PRO
• Gate Type: Slide
• Fail Secure: Yes; gate closes and remains closed on total power loss
• Motor: Brushless 24V DC with Hall Effect encoder; 1-1/4 HP AC motor equivalent; ~6 million cycles / 35,000 hours
• Gearbox: Size 60, 30:1 direct drive; cast iron housing, bronze gears, synthetic oil bath
• Gate Capacity: 2,200 lbs / 60 ft
• Gate Speed: 12 in per second; 16 selectable speeds
• Chain Height: 7.5 in
• Frame: 1/4 in cold rolled steel, fully welded, gold zinc plated
• Dimensions: 14.5 in W x 19 in D x 25.5 in H
• Shipping Weight: 158 lbs
• Input Power: Switchable 115VAC / 6A or 230VAC / 2A, single phase
• Power Supply: 15 Amp toroid with power management board
• Battery Backup: AGM; approximately 200 cycles; three selectable backup modes
• Remote Power (Magic Box): Sold separately; up to 500 ft from AC source; no battery dependency
• Lightning Protection: 44 channels; 20 kV / 10 kA
• Operating Temperature: -4°F to 165°F (-20°C to +74°C)
• Event Log: 8,000 events; USB OBD port download as .TXT file
• Safety Compliance: UL 325/991 Class I, II, III, and IV; CSA approved
• Duty Cycle: Continuous
• Included: Cover door, 25 ft nickel-plated chain, mounting brackets
• Warranty: 5 years on components; 1 year on battery and idler sprockets
• Condition: New

Conclusion

The MAX 2200 PRO is a slide gate operator and is not interchangeable with the Megatron swing gate series. Virtual limits ship as standard; the magnetic chain sensor kit is an optional add-on available factory-installed or as a field retrofit. The optional heavy-duty steel enclosure is a special order item sold only with a new operator purchase, not separately. Safety sensors required for UL 325 2018 compliance are not included. Magic Box is sold separately. Warranty coverage applies only to units purchased through authorized dealers.
