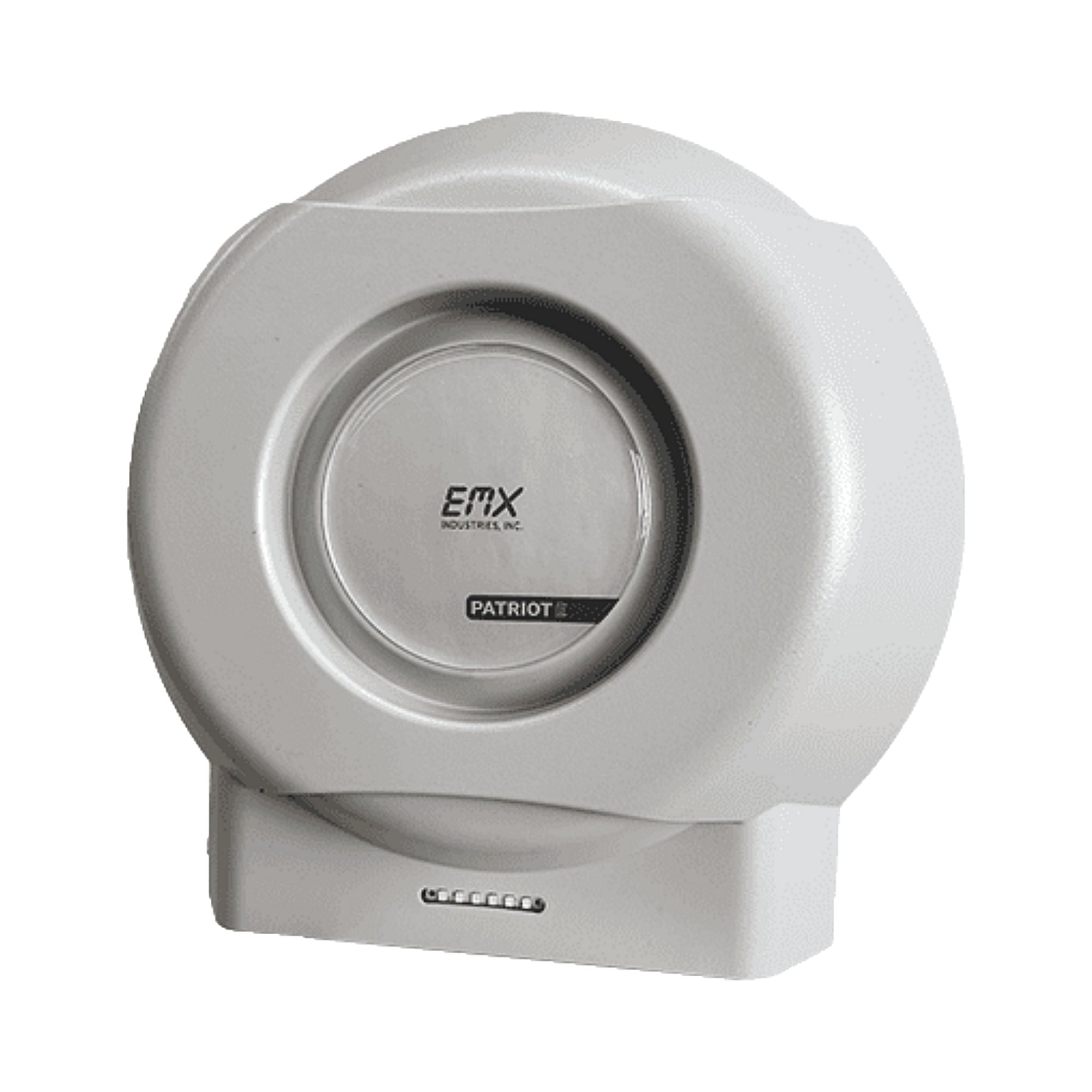

EMX Patriot-E Long-Range RFID Reader 902-928 MHz

Long-Range RFID Reader for Vehicle Access Control

The EMX Patriot-E is a long-range RFID reader designed for secure vehicle access control in gated communities, commercial properties, and industrial perimeters. With circular polarization and a 7.5 dBi gain antenna, it delivers dependable tag detection at distances of 18 to 25 feet, even in demanding environments. Supporting a broad range of communication outputs including Wiegand, RS-232, RS-485, and OSDP, the Patriot-E offers exceptional flexibility for system integration.

This unit reads UHF EPC Gen2-compatible credentials, including windshield tags, hang tags, cards, and headlamp tags. Its software-adjustable features allow tailored configuration for timing, output behavior, and tag filtering. The unit ships complete with a mounting bracket, power supply, and test tag, while its IP65-rated housing ensures durable outdoor performance.

Key Features

• Circular polarized antenna with 7.5 dBi gain
• Long-range tag detection from 18 to 25 feet
• Includes mounting bracket, power supply, and test tag
• Supports Wiegand, RS-232, RS-485, and OSDP
• Adjustable dBm levels, relay, buzzer, LED timing, and Wiegand timing
• Compatible with UHF EPC Gen2 tags including windshield, hang, card, and headlamp formats
• Optional Bluetooth credential support
• Stores up to 500 authorized tag numbers for standalone use
• Weather-resistant IP65 housing for secure outdoor mounting
• LED and audible indicators for visual and audio confirmation

Programming & Configuration

• Configurable via PC software
• Programming interfaces: RS-232 (Patriot-E), Ethernet (Patriot-E.TCP), or Wi-Fi (Patriot-E.WiFi)
• Adjust RF output strength (dBm), LED and buzzer behavior
• Filter by facility code or tag ID
• Modify Wiegand format, buffer, and relay timing
• Upload and manage whitelist of up to 500 authorized tag numbers

Technical Specifications

• Frequency: 902–928 MHz
• Max RF Power: 30 dBm (1 Watt)
• Supply Voltage: 9–48 VDC
• Current Draw: 1.82A max @ 5VDC; 470mA standby
• Included Power Supply: 110/240VAC to 12VDC
• Outputs to Controller: Wiegand, RS-232, Relay Contact, RS-485 / OSDP
• Reader Configuration Interfaces: RJ45 Ethernet, Wi-Fi, RS-232
• Operating Temperature: -20°C to +70°C
• Size: 10.7" x 10.7" x 3.7"
• Enclosure Rating: IP65

Available Models

• Patriot-E: Circular polarized RFID reader with RS-232 programming
• Patriot-E.TCP: Adds Ethernet interface for network-based configuration
• Patriot-E.WiFi: Includes integrated Wi-Fi for wireless setup
• Patriot-E.BLE: Adds Bluetooth support for mobile credentials

Compatible Credentials

• Windshield Tags - UHF EPC Gen2
• Hang Tags - UHF EPC Gen2
• Access Cards - UHF EPC Gen2
• Headlamp Tags- UHF EPC Gen2
• Bluetooth credentials - Optional for Patriot-E.BLE only

Conclusion

The EMX Patriot-E delivers secure, configurable, and long-range RFID access control for professional perimeter security systems. Designed to integrate easily with a variety of controllers and tag formats, it offers a scalable solution for environments requiring precise detection, outdoor durability, and flexible configuration.
