FAAC 415 Singe Swing Gate Operator (24V)
FAAC 415 Single Swing Gate Opener

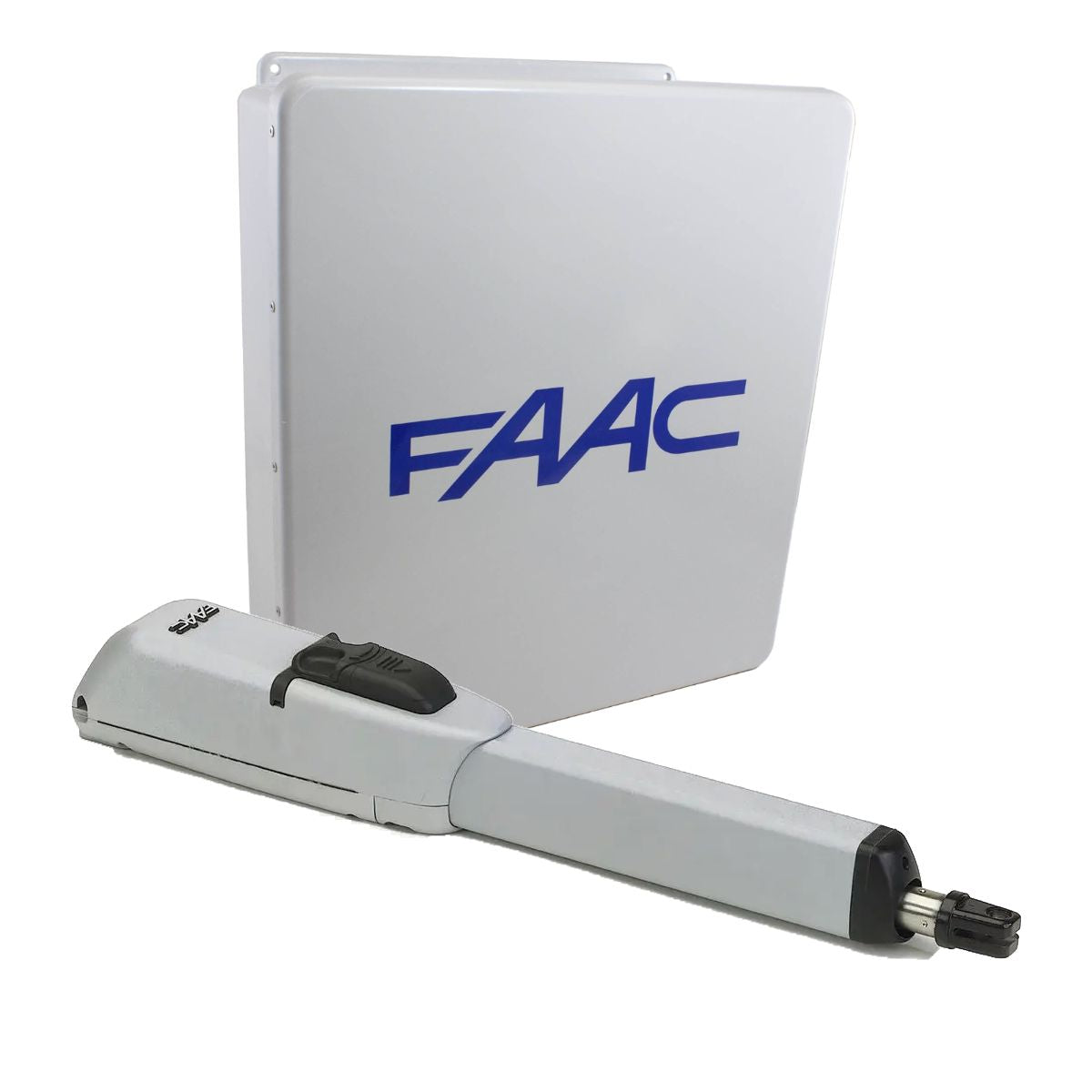

The 415 single package contains:
- 1 Operator 415
- 1 E024U Enclosure Kit
- 2 Batteries 12V 8 Ah
- 1 Receiver 433 RC Plug In
- 2 4-channel transmitter XT4 433 RC
- 1 Pair of XP 30 photobeam photocells
- 2 XP 30 adapters for conduit connection
DESCRIPTION

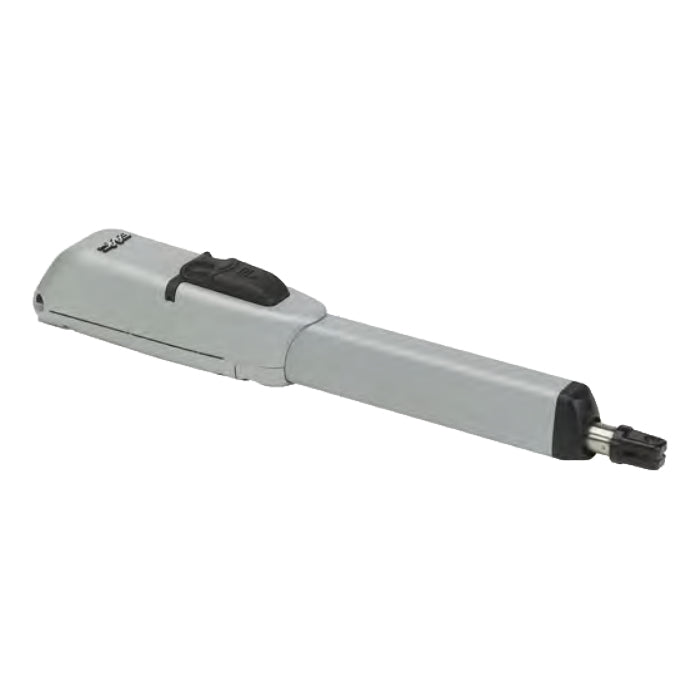

- “In-axis” thrust operator.
- Built in Limit switches.
- Die-cast aluminum body, entirely double-coat painted for longer life.
- Manual release device with simplified key-protected activation.
- Horizontal exit for cables to allow near to ground installation
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- Compliant with UL325 for Class I,II,III and IV applications
TECHNICAL SPECIFICATIONS
- Input Voltage 24 Vdc
- Power 70 W
- Thrust 630 lbf (280 daN)
- Effective stroke 15.75 in (400 mm)
- Minimum time to open 90° 16 sec
- Leaf max. width 15’ (4.6m)
- Leaf max. weight 700 lb (318 Kg)
- Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
- Use frequency continuous
- Operator Weight 17.6 lb (8 Kg)
- Dimensions (L x D x H) 36 x 4 x 6 in (904x105x148 mm)
- Protection class IP 54
