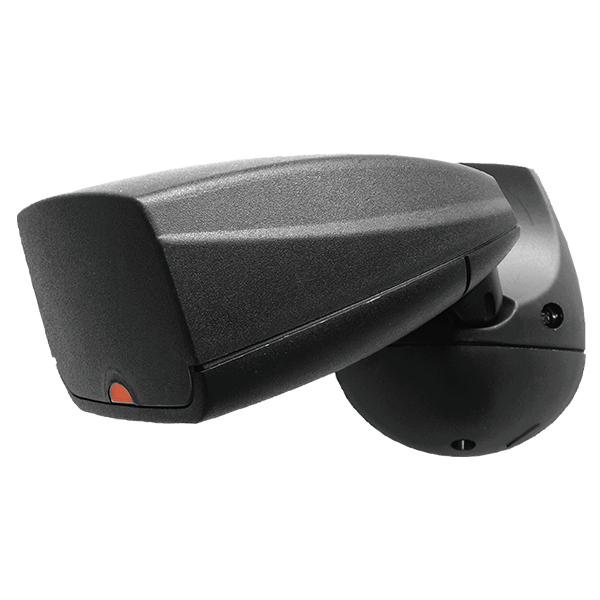

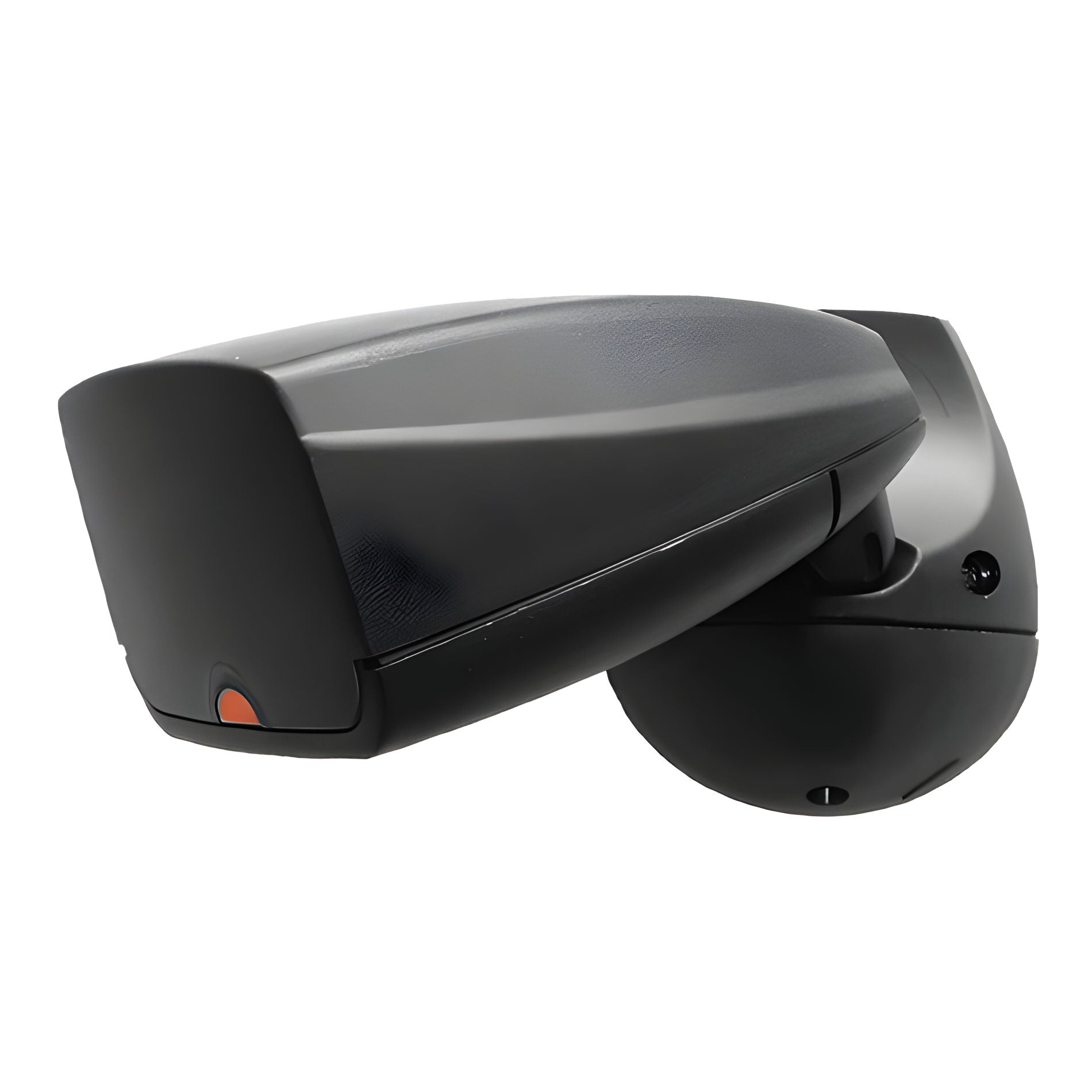

EMX HAWK 2 Vehicle Motion Sensor

EMX HAWK 2 VEHICLE MOTION SENSOR
EMX HAWK 2 VEHICLE MOTION SENSOR with wire harness

EMX HAWK 2 Vehicle Motion Sensor

Vendor
MFG:EMX
SKU: HAWK-2
Regular price
MSRP: $299.00
Sale price
Your Price: $299.00
Quantity must be 1 or more


EMX Hawk2 Vehicle Motion Sensor

The HAWK 2 vehicle motion sensor utilizes K-band microwave technology to detect people and vehicles from an overhead position. It provides wide coverage and high resolution to activate all types of automatic doors and industrial gates. The HAWK 2 is easily installed at a height up to 20 feet (6 meters). With its versatile mechanical orientation, the HAWK 2 ensures accurate positioning to the required coverage area. The detection sensitivity and direction of movement (approaching, leaving or both) are programmed by DIP switch settings.

FEATURES

  • Advanced K-band planar microwave technology
  • Easy installation and adjustment
  • Wall or ceiling installation
  • Directional sensitivity: toward, away or both
  • High coverage area resolution
  • Installation height up to 20 feet (6 meters)
  • Degree of protection: IP 65
  • Wide coverage area
  • Sharp, adjustable detection field
  • Directional settings
  • Easy to install









      Operating frequency 24.150 GHz
      Output power (EIRP) <20dBm
      Detectable speed 0.1 m/s min.
      Vertical directionality 0…60°
      Horizontal directionality #ERROR!
      Installation height Max. 6 m
      Range
      1…10 m adjustable
      Relay control time
      1…6 sec. adjustable
      Relay output configuration Form C (SPDT)
      Relay contact rating
      1A @ 24V AC/DC
      Detection indicator Red LED
      Operating temperature
      -4°F…122°F (-20°C…50°C)
      Supply Voltage
      12…24 VDC/VAC
      Operating current Max. 40mA
      Dimensions
      6.3”(160mm) x 3.8”(95mm) x 4.4”(110mm)
      Weight 1.0 lbs. (450 g)
      Housing ABS (plastic)
      Connection 6.5’ (2m) cable
      Mechanical protection IP65
