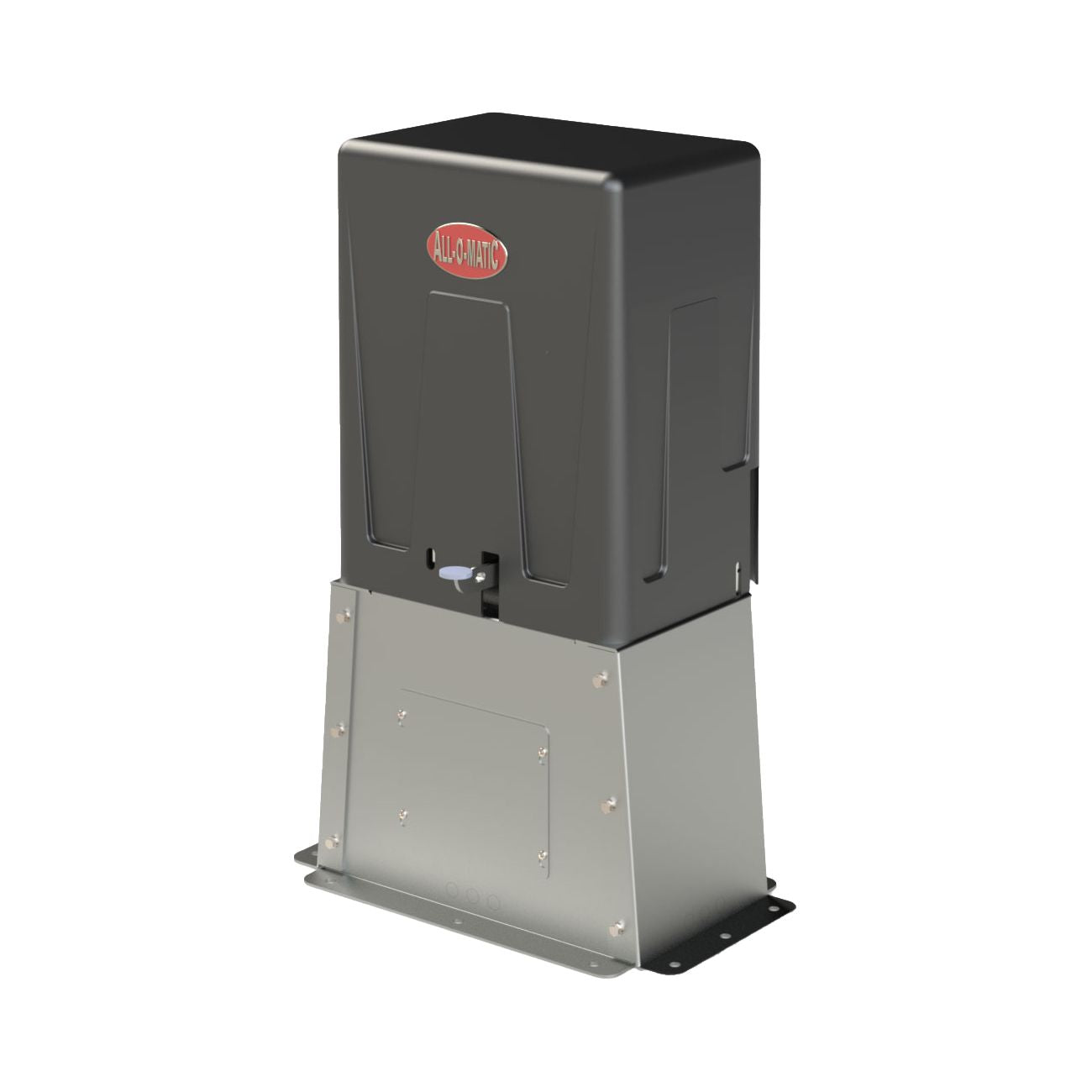

All-O-Matic SL150-AC Slider With Foot Pedal (1hp)
All-O-Matic SL-150 AC Slide Gate Operator (1hp)
Download Spec Sheet Download Manual
**Requires 2 photoeyes to function**
These operators run on gates for many high schools and government facilities like power distribution centers and police impound/tow yards. The SL-150 is in front of oil derricks and furniture warehouses. It will operate gates up to 60 ft. and 2,500lbs. With its premier 1hp motor.

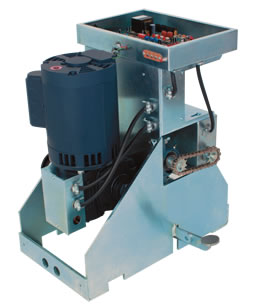

The SL-150AC was designed to meet the demands of gate installers who want a gate operator that can handle heavy traffic, commercial/industrial heavy doors and/or extreme weather conditions. The combination of its heavy duty frame, reliable gearbox and powerful AC motor make even the most challenging installations simple and easy. The SL-150AC has the option of ½ HP and 1HP motors capable of moving up to 1,500 lb. and 2,500 lb. gates, respectively.

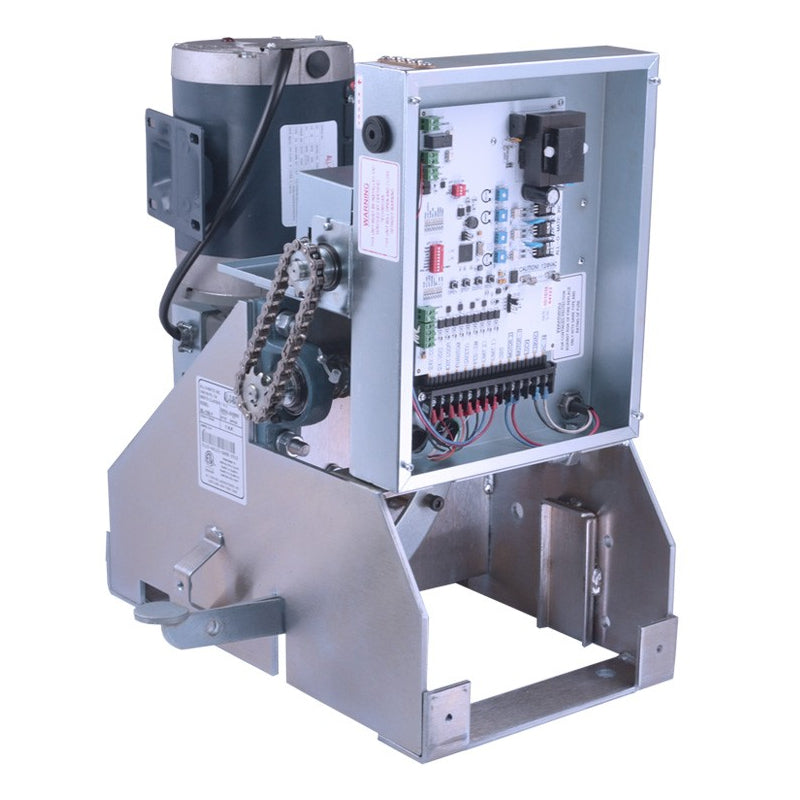

AC operators come with the simplest and most dependable control board in the industry that’s backwards compatible. A powerful and durable motor that has been field tested for over 20 years. Majority of AC operators now include an emergency foot pedal release and a built-in loop rack.
Specifications
- Motor 1 HP
- Duty Cycle Continuous
- Power Options 120 V AC
- Gear Box Ratio 30:1 w/ Internal Clutch

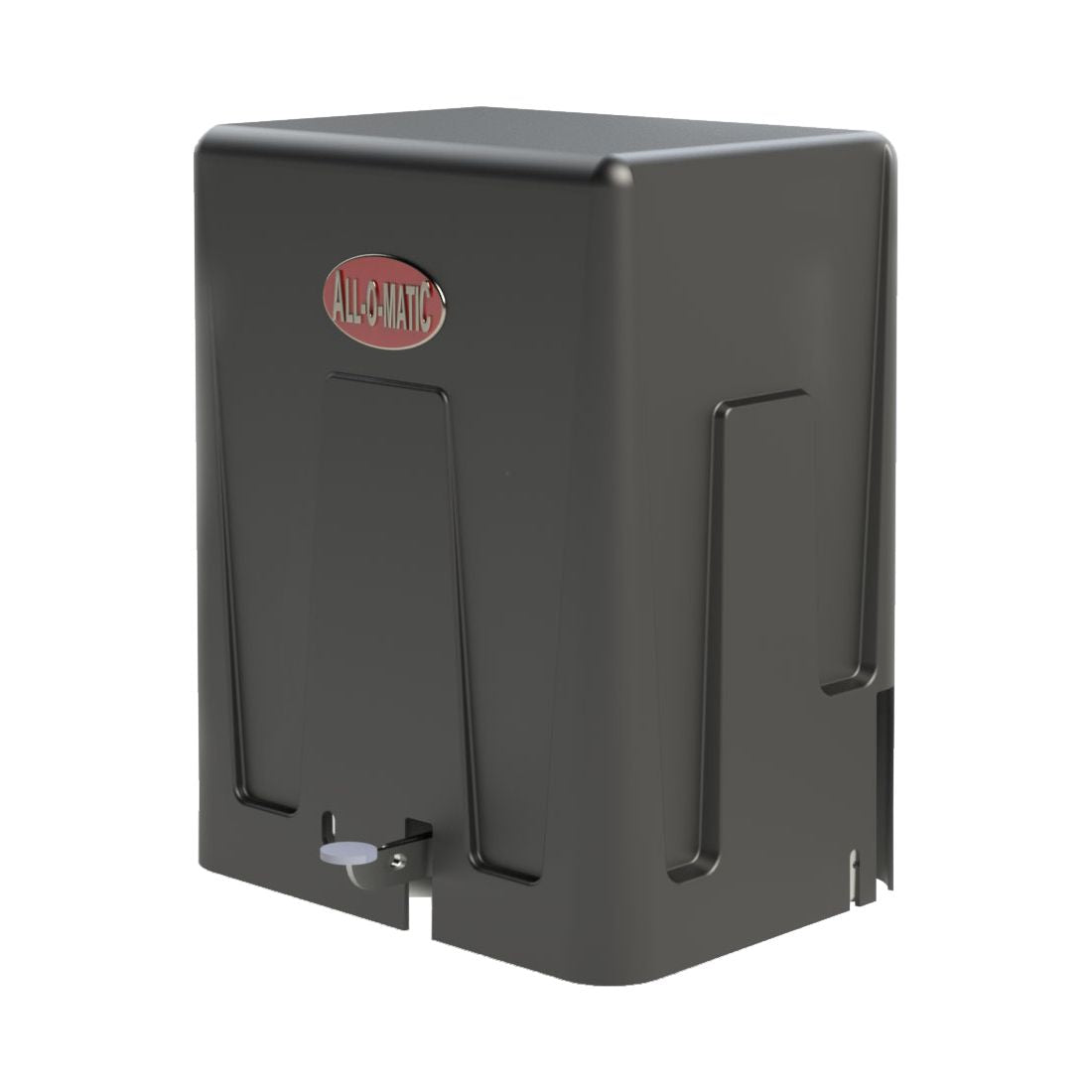

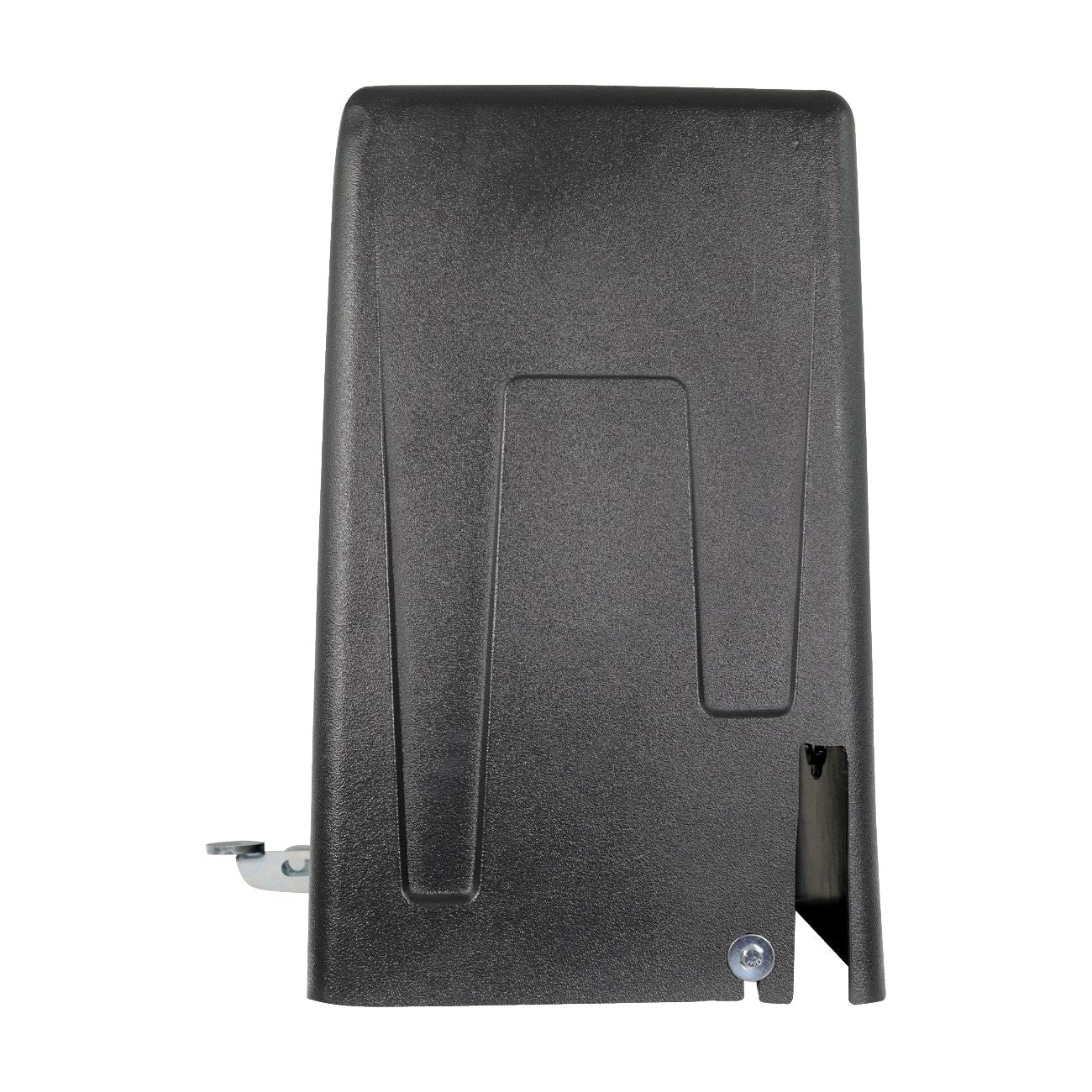

- Cover Rotationally Molded - Indestructible
- Dimensions W: 15”- L: 19.5” – H: 25”
- Maximum Gate Length 60 Feet
- Maximum Gate Weight 2,500 lbs
- Gate Speed 12 inches per sec
- Emergency Release Foot Pedal
- UL 325 & UL 991 Compliant, ETL Listed
- Limited parts warranty provided by Allomatic: 7 Year Residential, 5 Year Commercial
