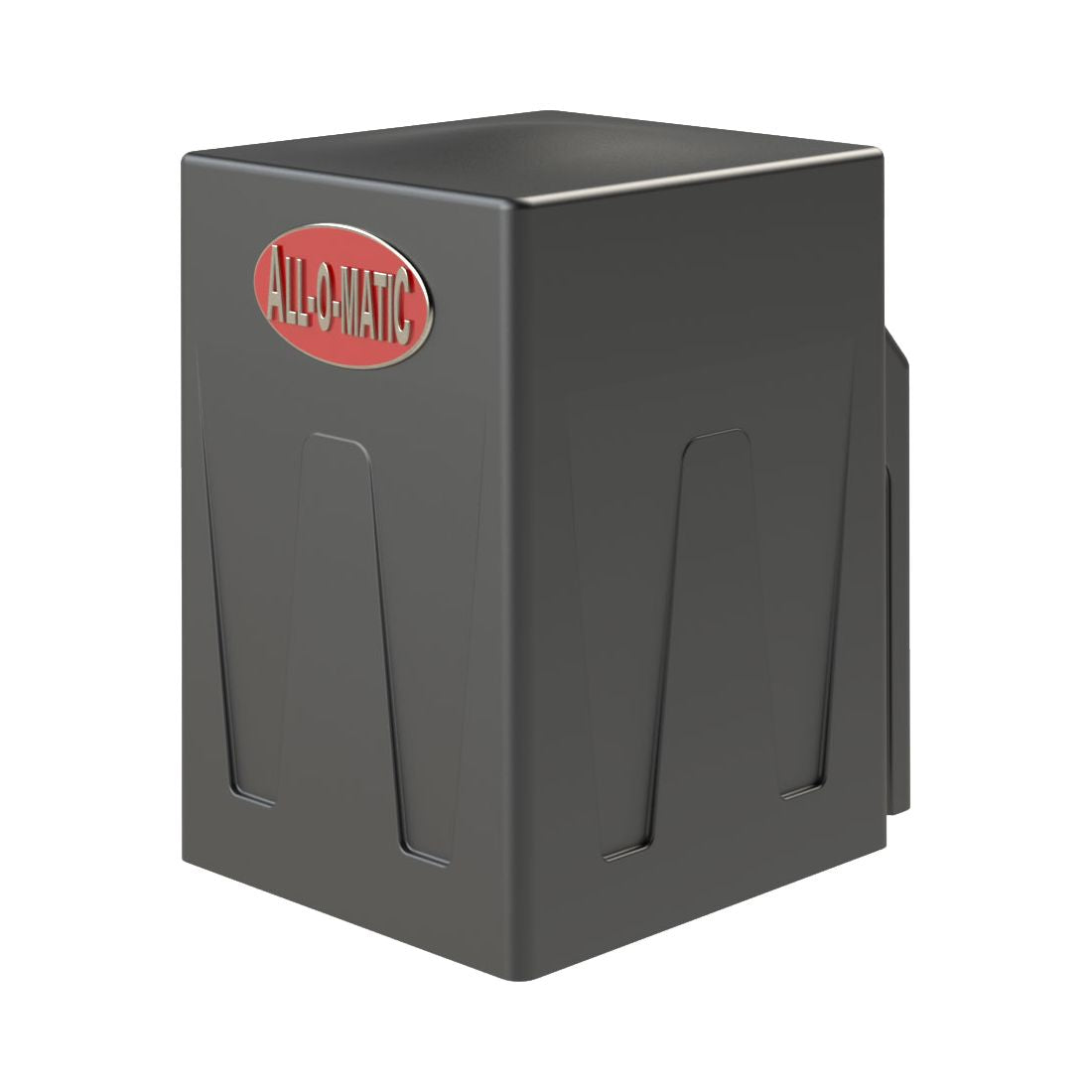

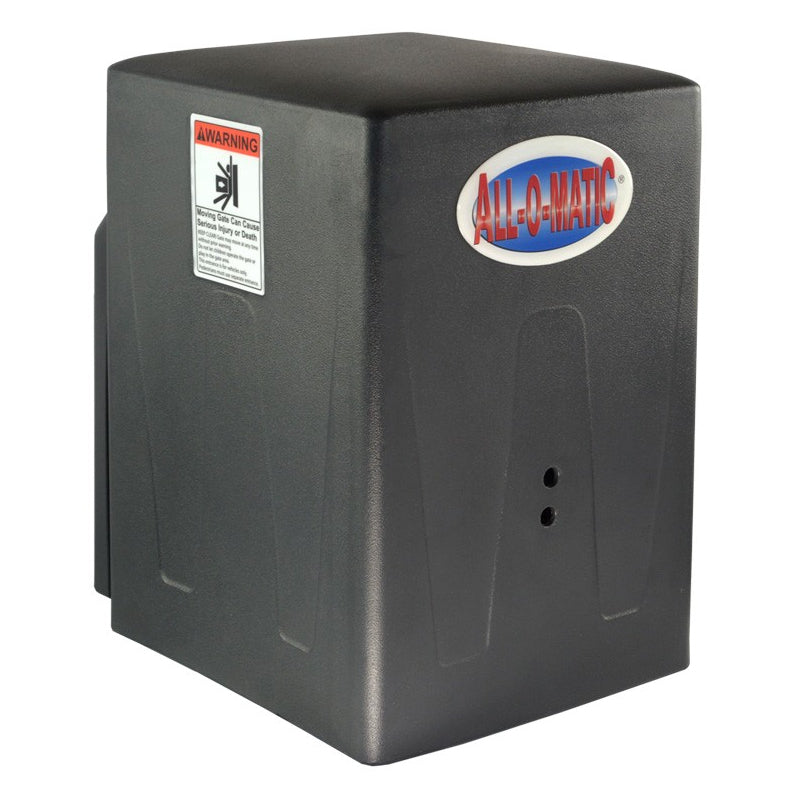

All-O-Matic SL-45DC Slide Gate Operator

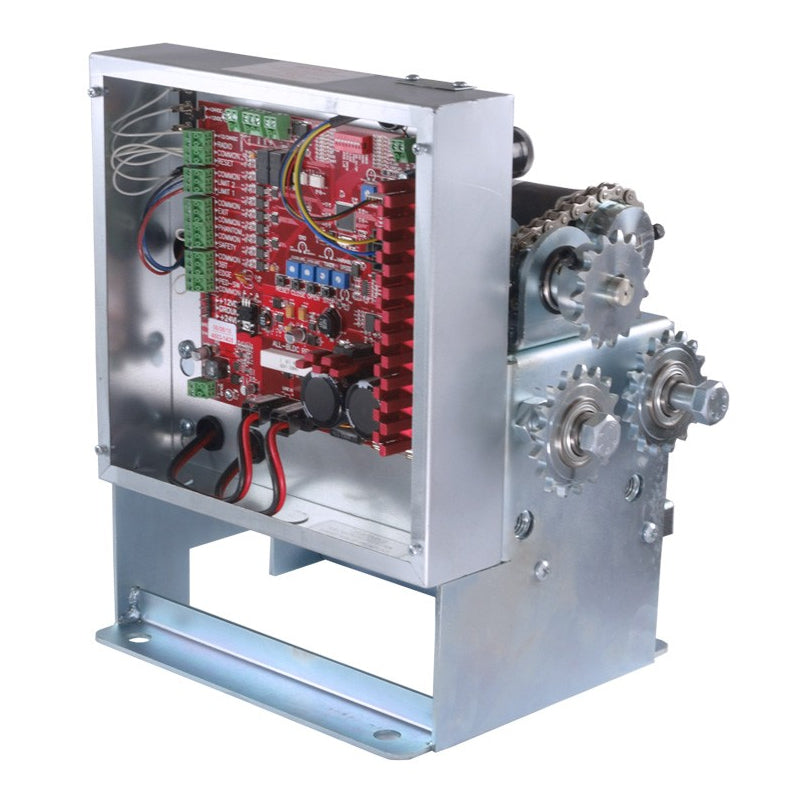

The SL-45DC comes with an integrated battery backup that can provide up to 250 continuous cycles during times of power outages or emergencies. It is the first gate operator to use a combination of a high efficiency Planetary Gear Box and Brushless DC Motor, making it the most efficient and reliable gate operator in the United States gate operator industry. The advantage of the planetary gear box over the conventional gear boxes used in the industry is its compact size and its outstanding power transmission efficiency. Consequently, this type of efficiency results in quiet smooth cycles
Download Spec Sheet Download Manual
Specifications
- Motor 24 VDC Brushless Motor ½ HP – Continuous Duty Cycle
- Duty Cycle Continuous
- Power Options 120/220 VAC Single Phase
- Gear Box Ratio Planetary 28.93:1
- Cover Rotationally Molded - Indestructible
- Maximum Gate Length 30 Feet
- Maximum Gate Weight 800 lbs
- Gate Speed 12 inches per sec
- Emergency Release - Can be pushed open in the event of a power failure
- Battery Backup
- Integrated, capable of up to 250 cycles on supplied two 7 Ah Batteries 12VDC
- Solar Capabilities 12VDC or 24VDC Solar Panel Input
- UL 325 & UL 991 Compliant
- Warranty Full 5 Year Residential, 5 Year Commercial
